Description

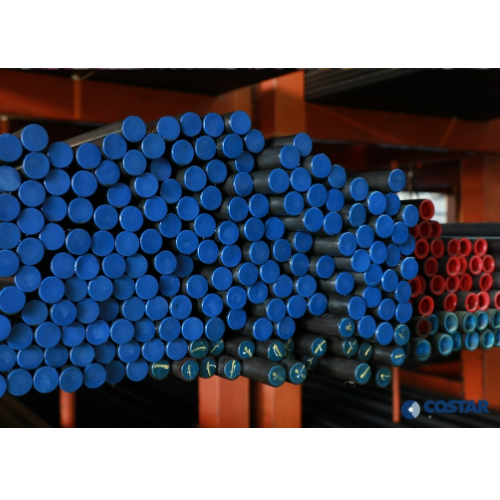

The hydraulic service pipes offered by Costar have excellent performance on workability, flexibility and strength under high pressure upon DIN 2391/DIN 1630 requirement. There is no scale on both I.D. and O.D. surface with plastic caps protected on both ends. We commit their accurate tolerance in dimension for easy connecting with joints.
Bend Angle：180 degree
Inside Radius：4 X O.D.
Tolerance： 5-25mm O.D. +/-0.10mm max.
26-35mm O.D. +/-0.15mm max.
36-50mm O.D. +/-0.20mm max.
Size Range：O.D. 4~100 mm, T.H. 1.0~10 mm
Length：3000 ~ 9000 mm
Bend Angle：180 degree
Inside Radius：4 X O.D.
Tolerance： 5-25mm O.D. +/-0.10mm max.
26-35mm O.D. +/-0.15mm max.
36-50mm O.D. +/-0.20mm max.
Size Range：O.D. 4~100 mm, T.H. 1.0~10 mm
Length：3000 ~ 9000 mm
