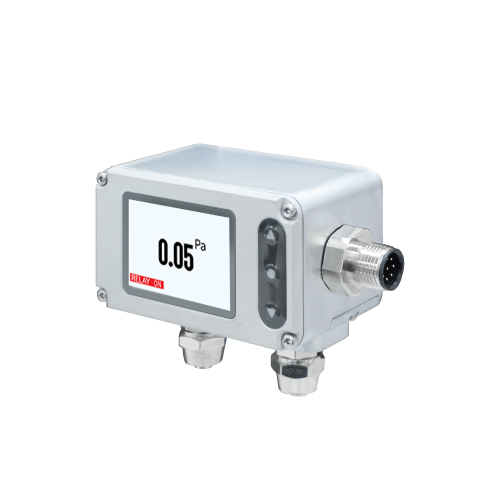

eyc-tech PMM06-D Differential Pressure Transmitter

Utilizing hot-wire sensing technology, high sensitivity for detecting minute differential pressure

● Thermal mass sensing for differential pressure
● High sensitivity at low pressure, low zero drift, range ±25, ±50, ±100 Pa
● Supports square root function for analog output
● 2″ LCD with easy button setup
● Analog output with RS-485 / Relay
● Compact metal housing, easy to install
● Resolution up to 0.05

Measuring element : Thermal mass type
Measuring range : ±25, ±50, ±100 Pa
Output : 4 ... 20 mA / 0 ... 10 V / Relay / RS-485
Accuracy : ±(1% F.S. + 0.1 Pa)
IP rating : IP65

---
