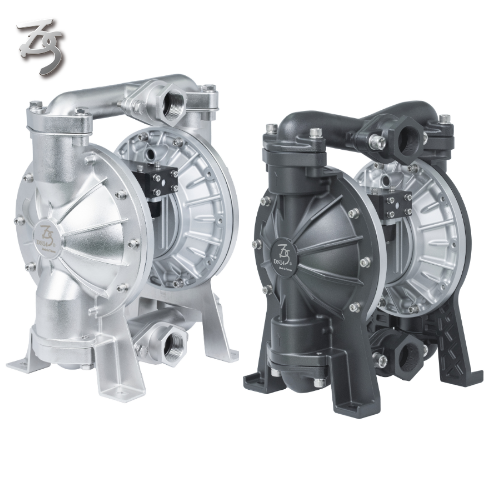

DYISHENG1-1/2 Inch METALLIC Air-Operated Double Diaphragm Pump

Specification:
Suction/ Discharge Port Size：1-1/2” PT(BSP)
Air Inlet Port Size： 1/2” PT(BSP)
Air Exhaust Port Size： 1” PT(BSP)
Min Air Inlet Pressure： 1.2 Bar(kgf/cm²) ; 17.4psi
Max Air Inlet Pressure： 8 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range：1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle：edition01-2850 ml/cycle ；edition02-2250 ml/cycle
Max Solids Handling： ⌀4.5mm
Max Air Consumption： 2300Liter/Per Min.;81.22 Scfm/Per Min
Max Wet Suction Lift： 6.7 m
Packing Dimensions： 38Lx29Wx50H(cm), 1.95Cuft
Net Weight：AL-19 KG/ SS-34.5 KG
Max flow rate：81.89 Gallon/Per Min. ; 310 Liter/Per Min.
Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

---
