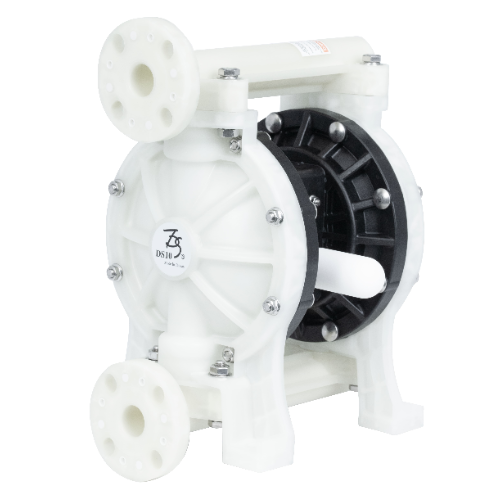

DYISHENG-1 Inch Complete Polypropylene Plastic Air-Operated Double Diaphragm Pump

【1 Inch Complete Polypropylene Air-Operated Double Diaphragm Pump】
Simplify your fluid transfer processes with DYI SHENG's air-operated double diaphragm pump. It is engineered to provide efficient and consistent pumping, allowing for seamless transfer of liquids. Its robust construction and corrosion-resistant materials ensure long-lasting durability, making it suitable for demanding environments. Count on our air-operated double diaphragm pump for efficient and cost-effective fluid handling.

Wetted Body Material: Polypropylene + Glass Fiber
Center Air Chamber Material: Polypropylene + Glass Fiber
Pipe Type: Center Flange(F: JIS 5kg/cm²)、Flank Flange(L: ANSI 150R.F.)
Diaphragm material: Teflon (TFM), Santoprene (STP)

Specification:
Suction/ Discharge Port Sizes： L: ANSI 150R.F. Φ110m/m ；F: JIS B 2211-1977；5kg/cm²
Air Inlet Port Size： 3/8” PT(BSP)
Air Exhaust Port Size： 1/2” PT(BSP)
Min Air Inlet Pressure： 1.2 Bar(kgf/cm²) ; 17.4psi
Max Air Inlet Pressure:： 7.0 Bar(kgf/cm²) ; 101.5psi
Best Air Inlet Pressure Range：1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle：650 ml/cycle
Max Solids Handling： ⌀3mm
Max Air Consumption： 1150Liter/Per Min.; 40.61 Scfm/Per Min
Max Wet Suction Lift： 6.7 m
Packing Dimensions：L：35Lx25Wx50H(cm), 1.54Cuft ；F：32Lx25Wx41H(cm), 1.27Cuft
Net Weight： 7.5 KG
Max flow rate： 29.06 Gallon/Per Min. ; 110 Liter/Per Min.

---
