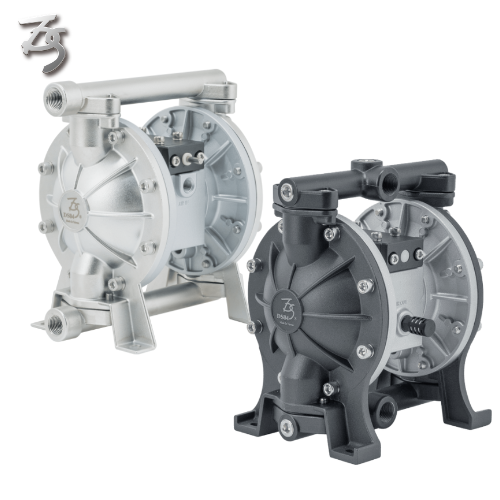

DYISHENG-1/2 Inch METALLIC Air-Operated Double Diaphragm Pump

Experience the versatility and dependability of our double diaphragm pump, a premier solution for an array of fluid transfer applications. Distinguished by its innovative dual-diaphragm design, it guarantees a seamless and highly efficient operation, setting a new standard in fluid transfer technology. The pump's compact and lightweight construction not only facilitates effortless installation but also enhances its portability, making it a versatile choice for dynamic industrial environments.

Specification:
Suction/ Discharge Port Size：1/2” PT(BSP)
Air Inlet Port Size： 1/4” PT(BSP)
Air Exhaust Port Size： 1/4” PT(BSP)
Min Air Inlet Pressure： 0.5 Bar(kgf/cm²) ; 7.25psi
Max Air Inlet Pressure： 8.0 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range：1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle：150 ml/cycle
Max Solids Handling： ⌀2mm
Max Air Consumption： 550Liter/Per Min.;19.42 SCFM
Max Wet Suction Lift： 6.7 m
Packing Dimensions： 26Lx21Wx29H(cm), 0.56Cuft
Net Weight：AL-4.5 KG/ SS-7 KG
Max flow rate：12.68 Gallon/Per Min. ; 48 Liter/Per Min.
Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

---
