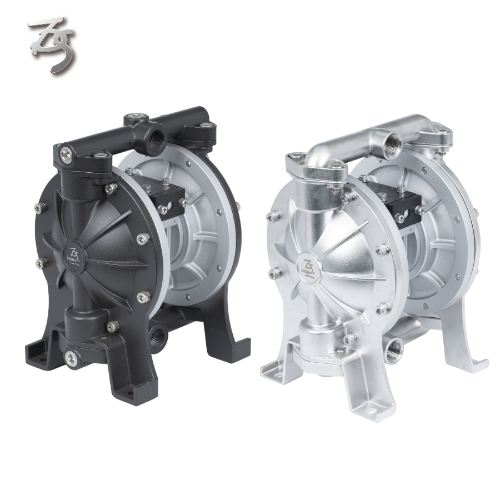

DYISHENG-3/4 Inch METALLIC Air-Operated Double Diaphragm Pump

Improve your fluid transfer processes with DYI SHENG's high-quality double diaphragm pump. Engineered for durability and versatility, it provides reliable pumping performance in demanding applications. The dual diaphragm design ensures balanced and consistent fluid transfer, minimizing downtime and maintenance. Its compact and lightweight design allows for easy installation and mobility.

Specification:
Suction/ Discharge Port Size：3/4” PT(BSP)
Air Inlet Port Size：1/4” PT(BSP)
Air Exhaust Port Size： 3/8” PT(BSP)
Min Air Inlet Pressure： 0.5 Bar(kgf/cm²) ; 7.25psi
Max Air Inlet Pressure： 8 Bar(kgf/cm²) ; 116psi
Best Air Inlet Pressure Range：1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle：310 ml/cycle
Max Solids Handling：⌀2.4mm
Max Air Consumption： 750Liter/Per Min.;26.49 SCFM
Max Wet Suction Lift： 6.7 m
Packing Dimensions： 26Lx24Wx35H(cm), 0.77Cuft
Net Weight： AL-6.5 KG/ SS-11.5 KG
Max flow rate： 22.45 Gallon/Per Min. ; 85 Liter/Per Min.
Diaphragm material: Teflon (TFM), Polyethylene(UPE), Santoprene (STP)

---
