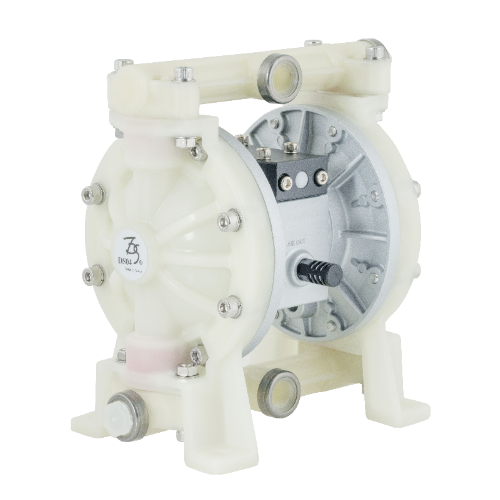

DYISHENG-1/2 Inch Polypropylene Plastic Air-Operated Double Diaphragm Pump

【1/2 Inch Polypropylene Air-Operated Double Diaphragm Pump】
DYI SHENG's diaphragm pump is built to endure, with a durable construction and corrosion-resistant materials that guarantee long-lasting performance, even in the most challenging of environments. No matter the demands of your application, our double diaphragm pump is up to the task.

Wetted Body Material: Polypropylene + Glass Fiber
Center Air Chamber Material: Aluminum Alloy
Diaphragm material: Teflon (TFM), Santoprene (STP)

Specification:
Suction/ Discharge Port Size：1/2” PT(BSP)
Air Inlet Port Size： 1/4” PT(BSP)
Air Exhaust Port Size： 1/4” PT(BSP)
Min Air Inlet Pressure： 0.8 Bar(kgf/cm²) ; 11.6psi
Max Air Inlet Pressure： 7 Bar(kgf/cm²) ; 101.5psi
Best Air Inlet Pressure Range：1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle：140 ml/cycle
Max Solids Handling： ⌀2mm
Max Air Consumption： 530Liter/Per Min.;18.72 Scfm/Per Min
Max Wet Suction Lift： 6.7 m
Packing Dimensions： 29Lx20Wx30H(cm), 0.62Cuft
Net Weight： 4 KG
Max flow rate： 12.16 Gallon/Per Min. ; 46 Liter/Per Min.

---
