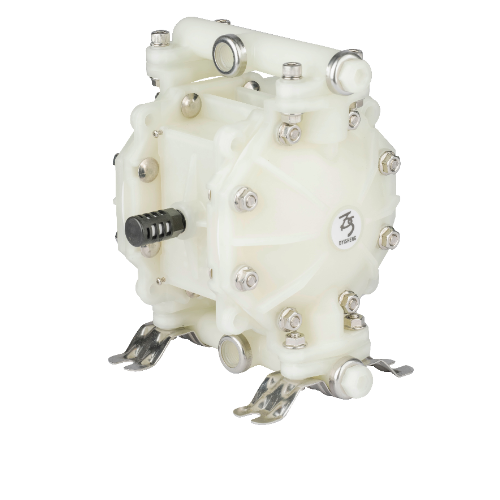

DYISHENG-1/4 Inch Polypropylene Plastic Air-Operated Double Diaphragm Pump

DYI SHENG's AODD pump is built to endure, with durable construction and corrosion-resistant materials that guarantee long-lasting performance, even in the most challenging of environments. No matter the demands of your application, our double diaphragm pump is up to the task.

The compact design of our pneumatic diaphragm pump not only ensures its adaptability in tight spaces but also makes it an ideal choice for mobile applications. Its installation is a breeze, facilitating swift integration into various setups. This pump is engineered to meet the diverse and demanding needs of industries, providing an indispensable solution for fluid transfer tasks.

Specification:
Suction/ Discharge Port Size： 1/4” PT(BSP)
Air Inlet/ Exhaust Port Size： 1/4” PT(BSP)
Min Air Inlet Pressure： 0.8 Bar(kgf/cm²) ; 11.6psi
Max Air Inlet Pressure： 7 Bar(kgf/cm²) ; 101.5psi
Best Air Inlet Pressure Range： 1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi
Discharge Volume Per Cycle： 50 ml/cycle
Max Solids Handling： ⌀1mm
Max Air Consumption： 370Liter/Per Min.; 13.07 Scfm/Per Min
Max Wet Suction Lift： 6.7 m
Packing Dimensions： 23.5Lx16.5Wx17H(cm), 0.23Cuft
Net Weight： 1.3 KG
Max flow rate： 3.7 Gallon/Per Min. ; 14 Liter/Per Min.
Diaphragm Specification:PTFE (T)

---
